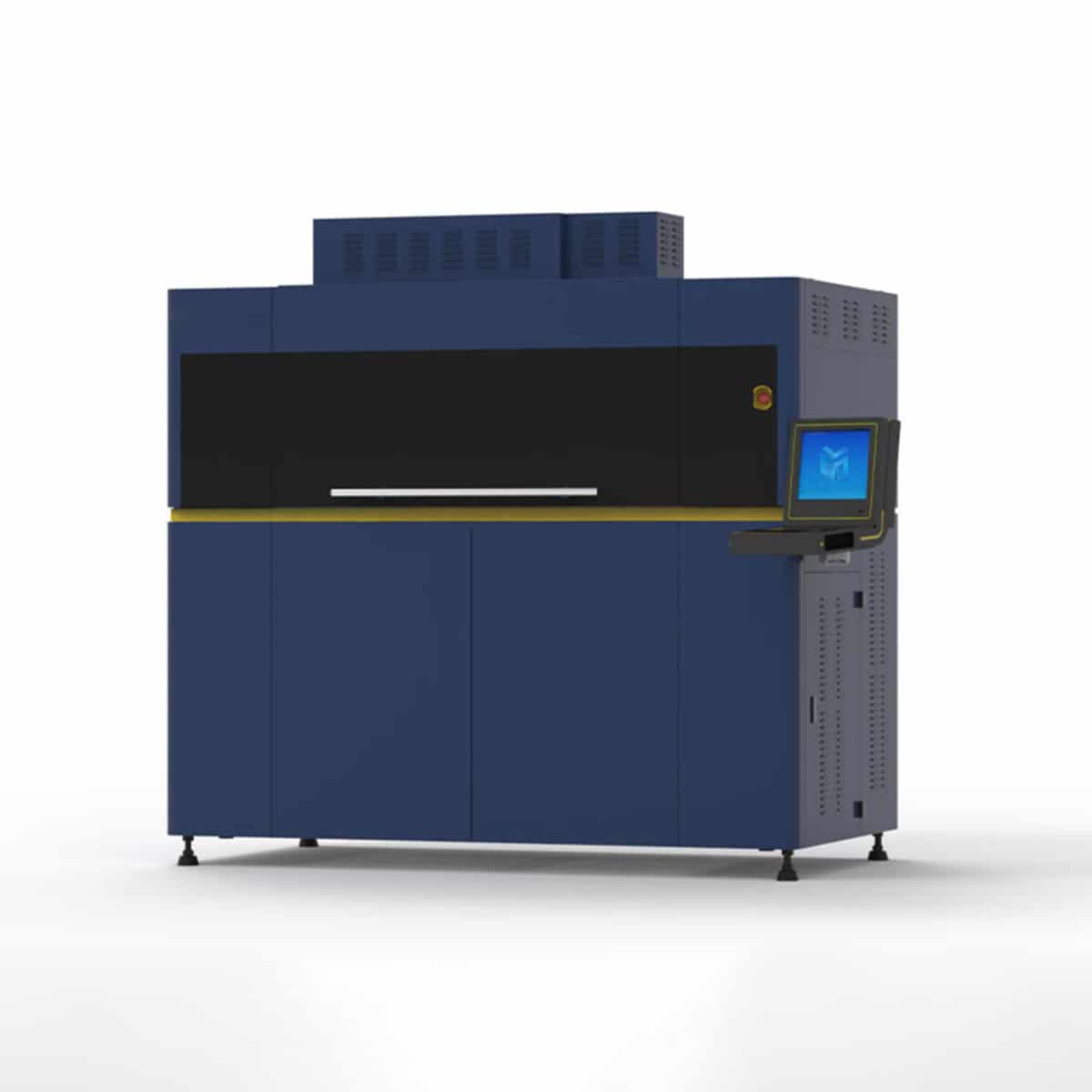

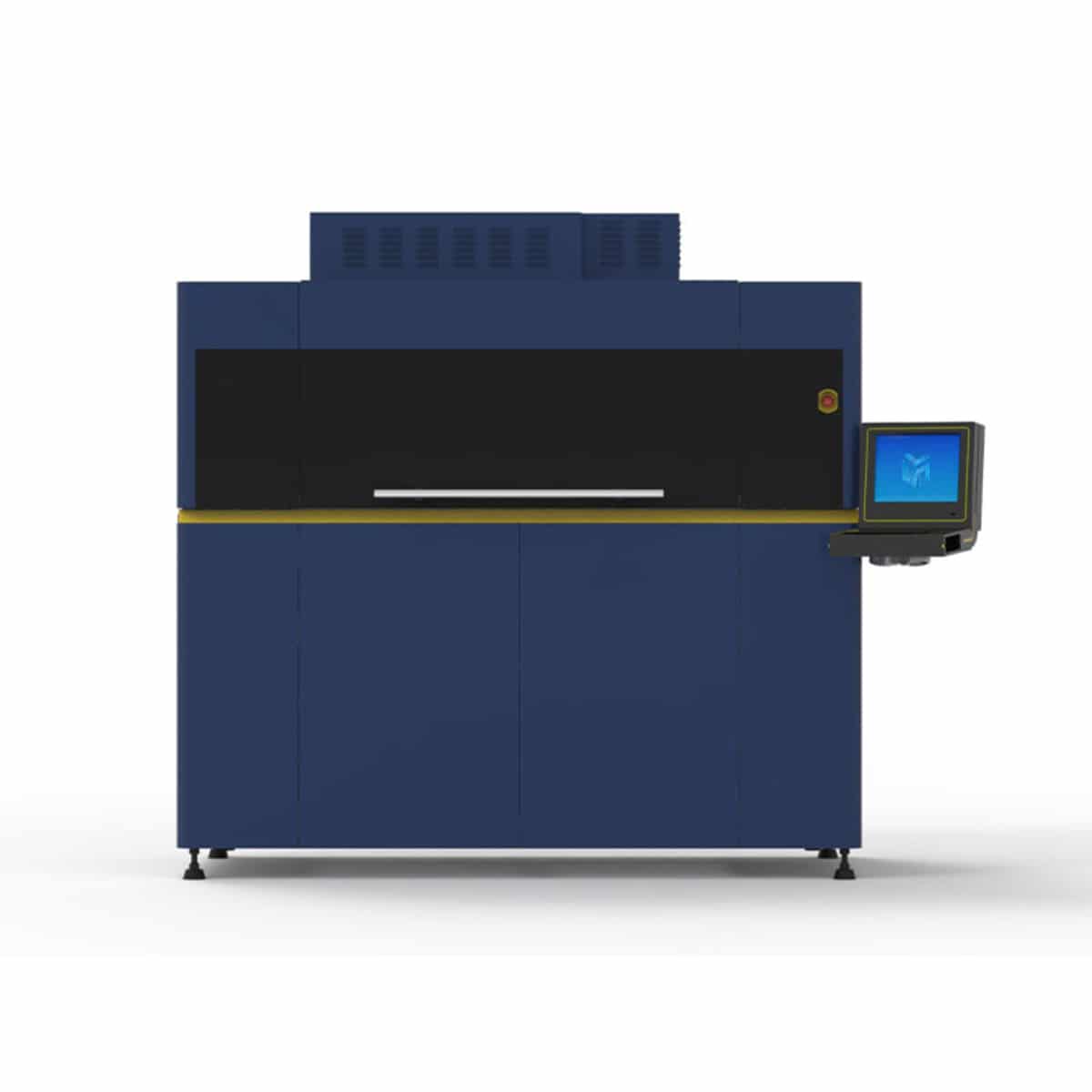

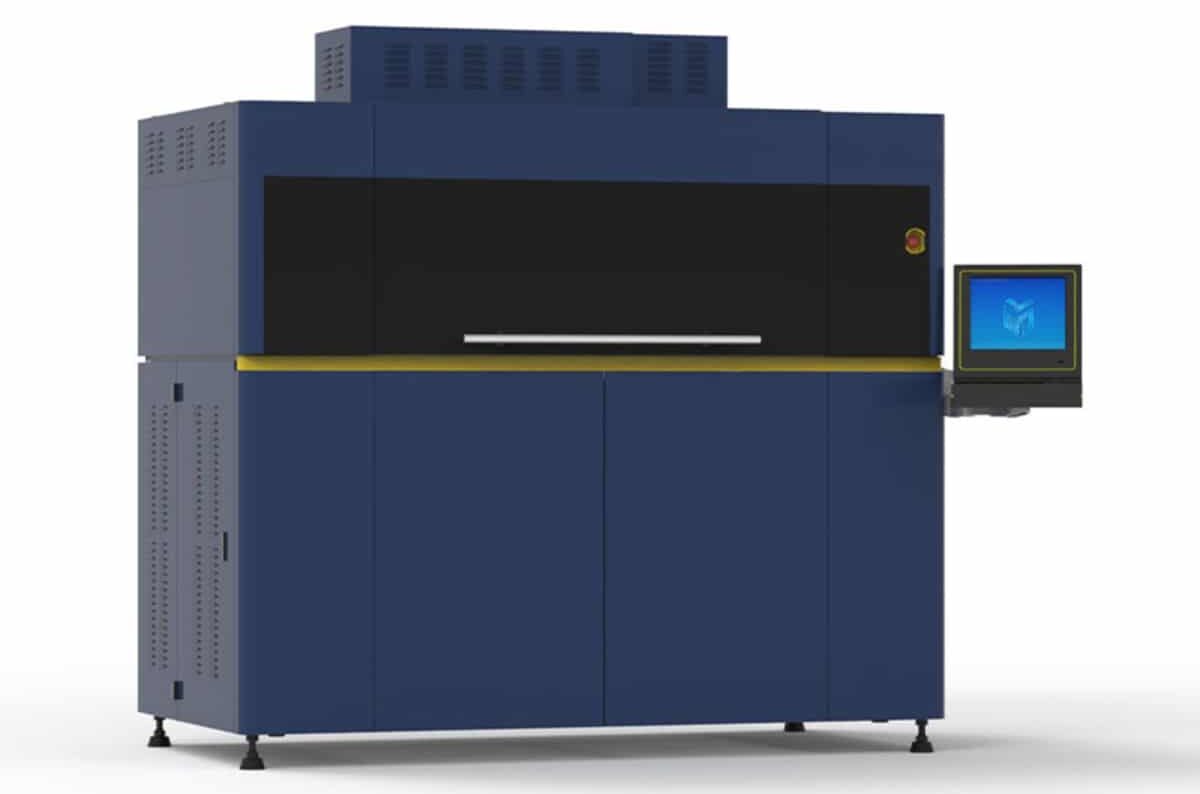

Discover the World of 3D Printing |Large Printing Size High Speed Industrial SLA 3D Printer
The 3DS300 Pro Large Printing Size High Speed Industrial SLA 3D Printer offers a powerful balance of speed, scale, and precision for industrial-grade resin printing. Optimized for large-format production, it delivers smooth, high-resolution results at accelerated print speeds. Whether you’re producing prototypes or end-use parts, its advanced SLA technology ensures consistent performance and excellent surface quality. Compact yet capable, the 3DS300 Pro Industrial SLA 3D Printer is an ideal choice for professionals seeking efficient, large-scale printing without compromising detail. Know more..
LASER SYSTEM
| Specification |
Details |
| Type |
Diode-pumped solid-state laser (Nd:YVO4) |
| Wavelength |
354.7 nm |
| Power at vat (5000 hrs) |
300 mW |
| Power auto-adjustment |
Optional |
RECOATING SYSTEM
| Specification |
Details |
| Process |
Intelligent reduced vacuum press recoater |
| Normal build style |
0.1 mm |
| Quick build style |
0.1 – 0.15 mm |
| Precision build style |
0.05 – 0.1 mm |
OPTICAL & SCANNING
| Specification |
Details |
| Beam diameter (@1/e²) |
0.10 – 0.15 mm |
| Focus style |
ScanLab |
| Part drawing speed |
Recommended 6.0 m/s |
| Beam jump speed |
Recommended 10.0 m/s |
| Reference build weight |
30 – 80 g/hr |
ELEVATOR
| Specification |
Details |
| Vertical resolution |
0.0002 mm |
| Position repeatability |
±0.01 mm |
| Maximum part weight |
30 kg |
RESIN VAT
| Specification |
Details |
| Volume |
Approx. 35.0 L (40 kg) |
| Maximum build box |
300 × 300 × 200/300 mm (X × Y × Z) |
| Resin heated style |
Hot air |
SOFTWARE
| Specification |
Details |
| Data interface |
SLC file, CLI file |
| Build software |
ZERO 4.0 |
| CAD interface |
STL file format via 3D design software |
INSTALLATION CONDITIONS
| Specification |
Details |
| Power |
200–240VAC, 50/60Hz, Single phase, 8A |
| Ambient temperature |
20 – 26 ºC |
| Built-in air condition |
Optional |
| Relative humidity |
< 40%, non-condensing |
| Size |
1.20m (W) × 0.87m (D) × 1.70m (H) |
| Weight |
Approx. 630 kg |
WARRANTY
| Component |
Warranty |
| Laser |
5000 hours or 12 months (whichever comes first) |
| Main machine |
1 year from installation date |
Why Choose the 3DS550Lite SLA 3D Printer?
🔹 300mW laser with auto-adjustment option (Nd:YVO4, 354.7nm)
🔹 300×300×200/300mm max build volume
🔹 High-precision recoating with multiple build modes (0.05–0.15mm)
🔹 Fast ScanLab scanning: 6 m/s drawing, 10 m/s jump speed
🔹 Ultra-fine 0.0002mm vertical resolution
🔹 ±0.01mm repeatability for stable part quality
🔹 Resin capacity approx. 35L with hot air heating
🔹 Supports STL, SLC, CLI file formats via ZERO 4.0 software
🔹 Optional built-in air conditioning for temperature control
Order Now – Get Your Large Printing Size High Speed Industrial SLA 3D Printer Today!
Order now and elevate your production capabilities with the 3DS300 Pro Large Printing Size High Speed Industrial SLA 3D Printer. Designed for professionals who value precision and efficiency, this advanced printer delivers large-format, high-speed, and ultra-detailed prints with ease. Don’t miss out—secure your 3DS300 Pro today and experience industrial-grade performance built to exceed expectations.
