Discover the World of 3D Printing |Automatic Large Size Desktop Ceramic 3D LDM Printer
The Automatic Large Size Desktop Ceramic 3D LDM Printer redefines desktop printing by combining precise extrusion technology with large build volume, tailored specifically for clay, porcelain, and ceramic-based applications. Whether for artistic projects, industrial ceramics, or experimental material printing, this machine is a robust, user-friendly solution that brings advanced Liquid Deposition Modeling (LDM) to your desktop. Know more..
Technical Specifications
| Parameter | Details |
|---|---|
| Building Size | 180 × 180 × 180 mm |
| Nozzle Size | 1.0–3.0 mm (2.0 mm Standard) |
| Feeding Mode | Electric push rod + screw extrusion |
| Molding Technology | Liquid Deposition Modeling (LDM) |
| Layer Thickness | 0.3–3.0 mm (0.5 mm Standard) |
| Materials | Clay, ceramics slurry, red porcelain, and various liquid flowing materials |
| Printing Speed | 10–40 mm/s (30 mm/s Preferred) |
| Printing Mode | U disk, TF card, USB data cable |
| LCD Screen | 3.5 inch TFT touch screen |
| Support File Format | STL, G-Code, OBJ |
| Support Software | Cura, Slic3r, Simplify3D, etc. |

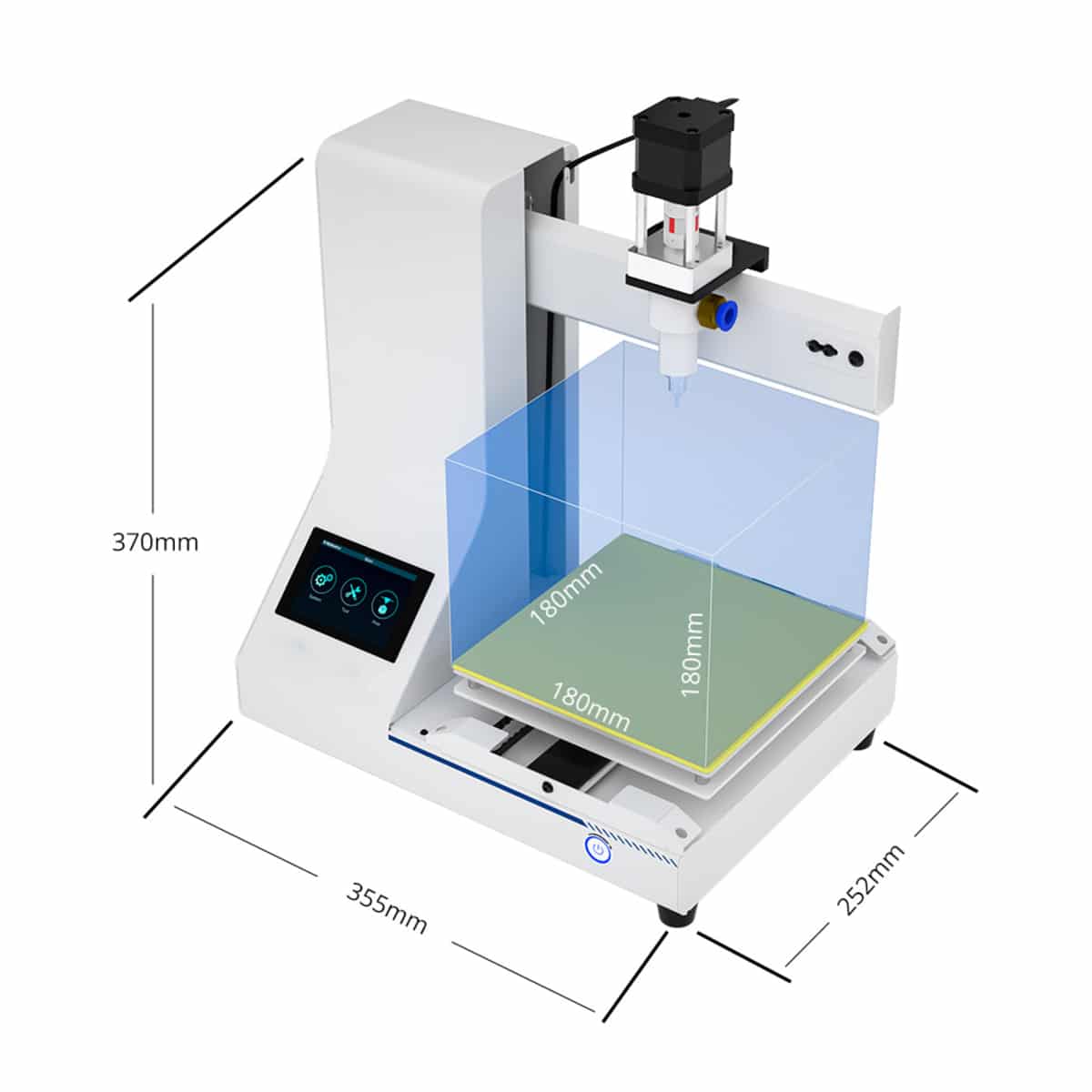

| Machine Dimensions | 355 × 252 × 370 mm |
| Machine Weight | ~7.5 kg |
| Package Size | 446 × 300 × 410 mm |
| Packing Weight | ~15 kg |
| Environmental Requirements | 8–40°C, Humidity 20–80% |
| Input Voltage | 100–240V AC |
| Output Voltage | DC 24V 4A |
| Language Interface | 8 Display Languages |
| Support Operating System | Windows |
| Resume Print | Support |
Why Choose the Automatic Large Size Desktop Ceramic 3D LDM Printer?
🔹 Supports clay, red porcelain, and various liquid materials

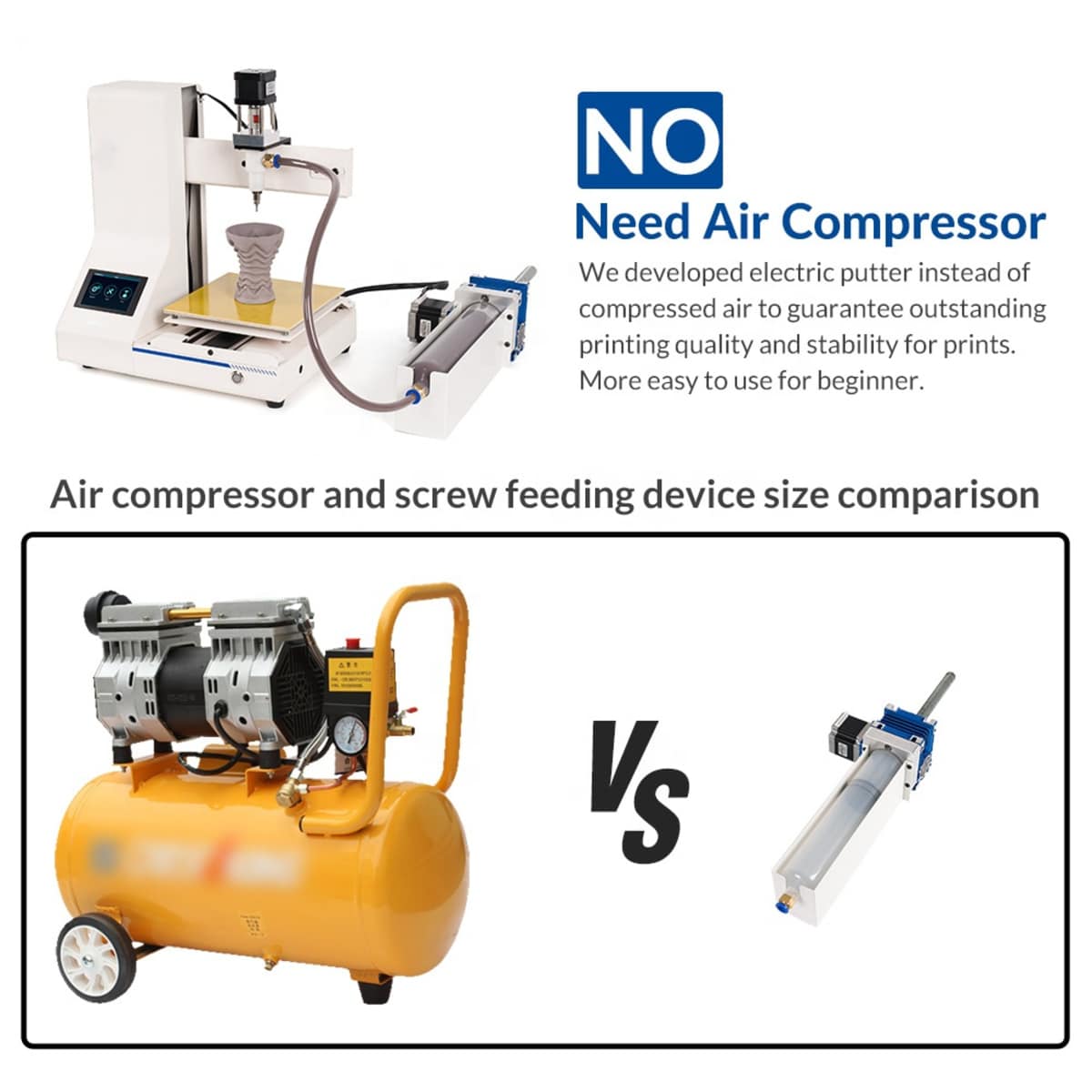

🔹 Equipped with electric push rod + screw extrusion system
🔹 Print speed adjustable from 10–40 mm/s
🔹 Layer thickness options from 0.3 to 3.0 mm
🔹 3.5-inch TFT touchscreen interface
🔹 Compatible with STL, G-Code, and OBJ files
🔹 Works with Cura, Slic3r, and Simplify3D
🔹 Compact machine size of 355 × 252 × 370 mm
🔹 Multi-language support and resume print feature
🔹 High compatibility with Windows OS
🔹 Standard nozzle: 2.0 mm, customizable 1.0–3.0 mm
Order Now – Get Your Automatic Large Size Desktop Ceramic 3D LDM Printer Today!
Take your ceramic printing to the next level with this industrial-grade desktop solution. It’s time to bring your creative ideas and material experiments to life with a machine that delivers quality, scale, and ease of use—all in one. Order today to experience seamless clay-based 3D printing!
