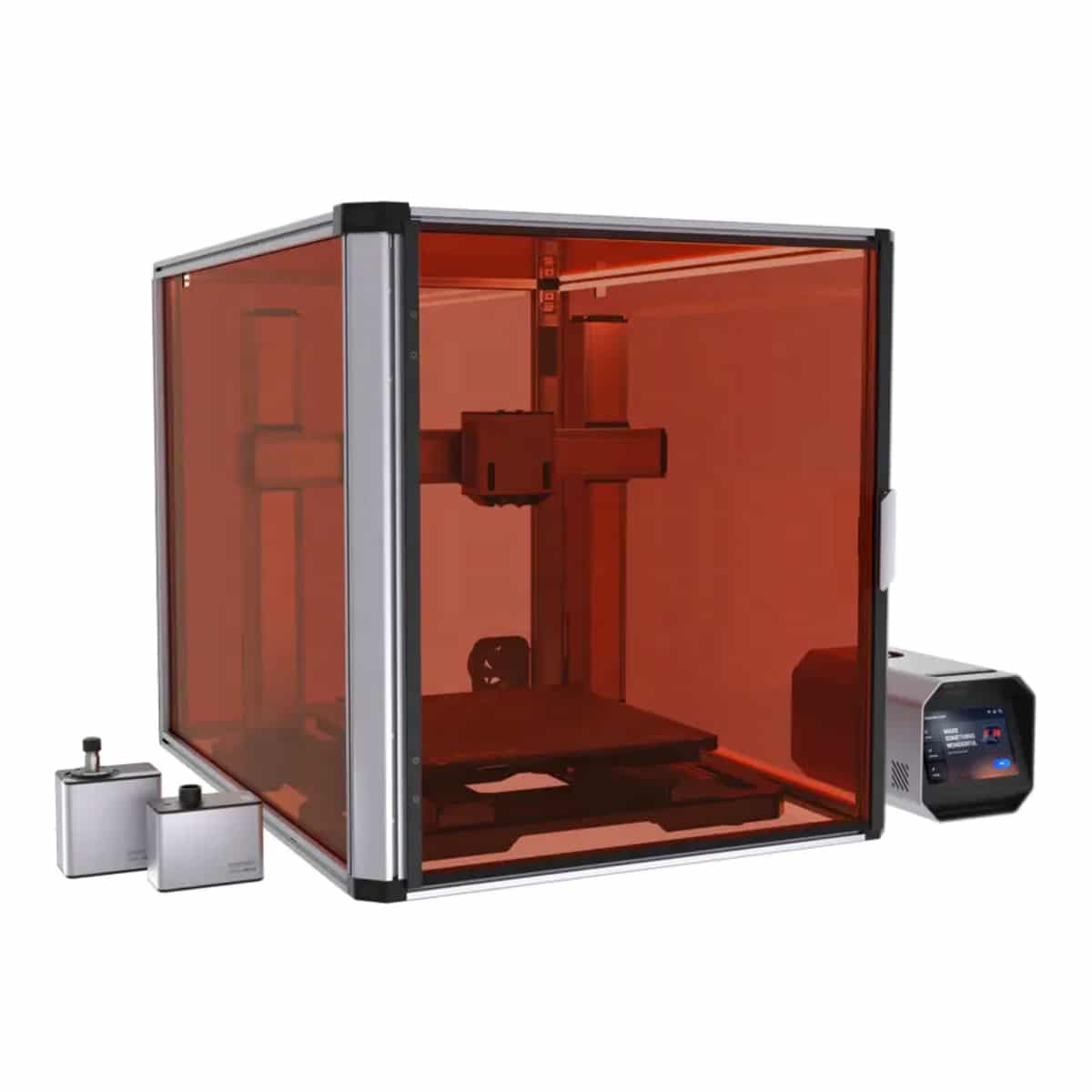

Discover the World of 3D Printing |Large 3D Printer With Laser Engraver And CNC Cutting Machine
The Large 3D Printer With Laser Engraver And CNC Cutting Machine is a true all-in-one powerhouse for advanced makers, engineers, and production labs. Combining high-precision large 3D printer with efficient laser engraving and powerful CNC cutting capabilities, this machine delivers unmatched versatility and scale. Ideal for prototyping, custom manufacturing, and multi-material creation — all with industrial-level accuracy. Know more..
General Specifications
| Feature | Specification |
|---|---|
| Dimensions (Machine) | 580 mm x 620 mm x 634 mm |
| Dimensions (Machine & Enclosure) | 665 mm x 943 mm x 705 mm |
| Integrated Controller Dimensions | 189 mm x 300 mm x 191 mm |
| Touchscreen Size | 7 inches |
| Power | 300W + 450W |
| Operating System | Android |
3D Printing Specifications
| Feature | Specification |
|---|---|
| Work Area (W x D x H) | 350 mm x 400 mm x 400 mm (Dual Nozzle) |
| Dimensional Accuracy | ± 0.1 mm |
| Nozzle Diameter (Standard) | 0.4 mm |
| Optional Nozzle Diameters | 0.2 mm, 0.6 mm, 0.8 mm |
| Standard Nozzle Material | Brass |
| Optional Nozzle Material | Hardened Steel |
| Max. Nozzle Temperature | 300°C |
| Max. Recommended Printing Speed | 180 mm/s |
| Build Plate | Double-sided PEI-coated Glass |
| High-temperature Zone | 260 mm x 260 mm |
| Max. Bed Temp (Inner Zone) | 110°C |
| Max. Bed Temp (Outer Zone) | 80°C |
| Supported Materials | PLA, ABS, ASA, PETG, TPU (Hardness > 90 Shore A), Breakaway PLA, PVA, HIPS, Nylon, Carbon Fiber Nylon, Glass Fiber Nylon |
| Supported File Formats | STL, OBJ |
Laser Engraving & Cutting Specifications
| Feature | Specification |
|---|---|

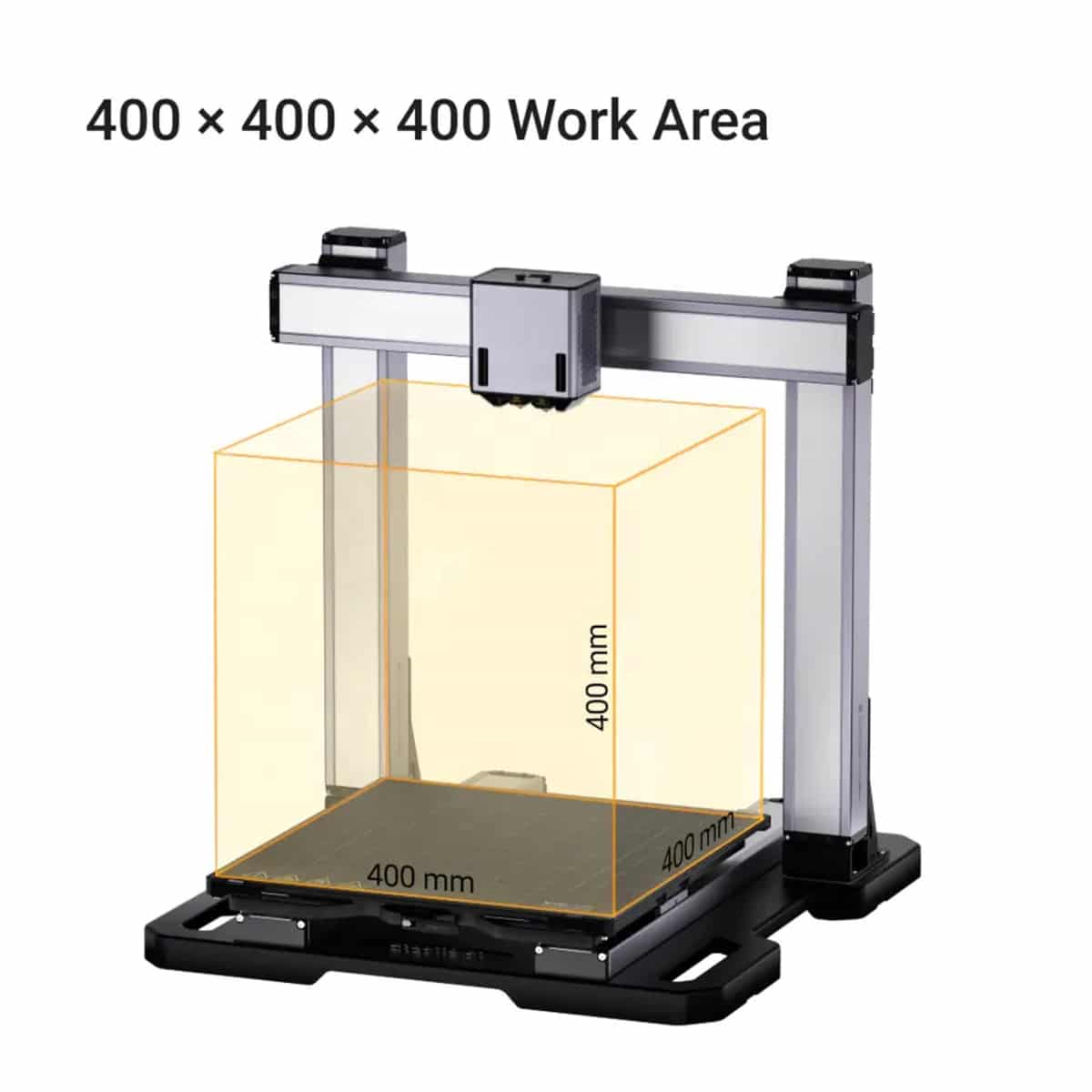

| Work Area (W x D) | 400 mm x 400 mm |
| Laser Power | 10W |
| Laser Type | 450–460 nm Semiconductor |
| Max. Engraving Speed | 100 mm/s |
| Max. Cutting Depth (Paulownia) | 8 mm |
| Operating Temperature | 0°C–35°C |
| Laser Spot Dimension | 0.05 mm x 0.2 mm |
| Supported Engraving Materials | Wood types (Basswood, Paulownia, Pinewood, Beech, Walnut, Bamboo), MDF, Metals (Painted, Tinplate, Stainless Steel, Anodized Aluminum), Glass, Slate, Ceramics, Jade, Marble, Leather, Fabric, Paper, Plastic, Dark Acrylic (except Blue) |
| Supported Cutting Materials | Same as above excluding metals, ceramics, slate |
| Supported Formats | STL, SVG, PNG, JPG, JPEG, BMP, DXF |
CNC Carving & Cutting Specifications
| Feature | Specification |
|---|---|
| Work Area (W x D) | 400 mm x 400 mm |
| Spindle Power | 200W |
| Max. Spindle Speed | 18,000 RPM |
| Max. Work Speed | 50 mm/s (Beech); 33 mm/s (Acrylic) |
| Max. Stepdown | 2 mm (Beech); 1 mm (Acrylic) |
| Shank Diameter | 0.5 mm – 6.35 mm |
| Supported Materials | Beech, Walnut, HDF, MDF, Plywood, Softwood, Jade, Carbon Fiber, Acrylic, Epoxy Tooling Board, PCB |
| Supported Formats | STL, SVG, PNG, JPG, JPEG, BMP, DXF |
Why Choose the Large 3D Printer With Laser Engraver And CNC Cutting Machine?
🔹 Large 350 x 400 x 400 mm print volume
🔹 Dual-nozzle printing with ±0.1 mm accuracy
🔹 Max 300°C nozzle temperature for high-temp materials
🔹 Supports over 12 filament types including PLA, ABS, Carbon Fiber
🔹 High-speed 180 mm/s printing
🔹 10W laser engraver with 400 x 400 mm area
🔹 Supports wood, metal, glass, leather engraving
🔹 CNC module with 18,000 RPM spindle
🔹 Handles hardwood, MDF, acrylic, carbon fiber
🔹 7″ touchscreen with Android OS
🔹 Smart features: resume print, power outage recovery
Order Now – Get Your Large 3D Printer With Laser Engraver And CNC Cutting Machine Today!
Whether you’re launching a 3D printing business, prototyping for clients, or building industrial parts in-house, this all-in-one large 3d printer brings you flexibility, precision, and scale. Don’t wait — upgrade your workshop today.
