Discover the World of 3D Printing |Professional High Speed Industrial Large Format FDM Printer

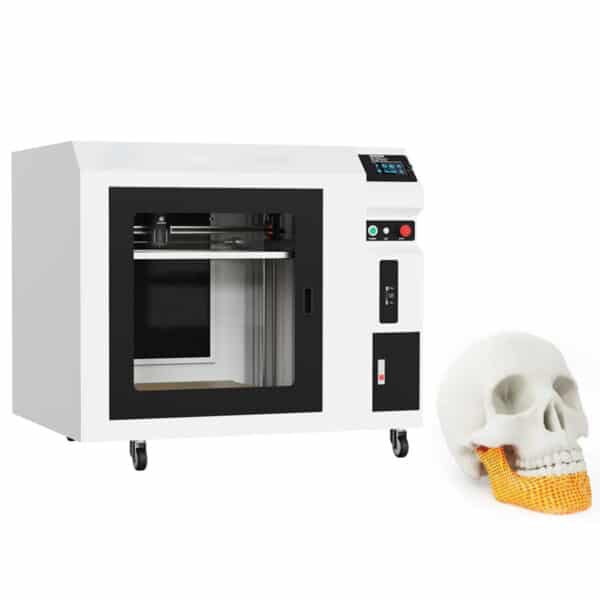

The Professional High Speed Industrial Large Format FDM Printer is engineered for heavy-duty performance, combining rapid print speeds, massive build volume, and high-temperature material compatibility. Designed with industrial needs in mind, this FDM printer excels at prototyping, reverse engineering, and producing functional parts with precision and speed. Its auto-leveling system, 450°C nozzle, and durable aluminum hotbed make it the ultimate solution for professionals seeking consistency and capability on a large scale. Know more..

General Specifications

Parameter	Details
Product Name	Professional High Speed Industrial Large Format FDM Printer
Technology	FDM (Fused Deposition Modeling)
Application	Industrial 3D Model Printing
Usage	Reverse Engineering 3D Printer
Production Capacity	1000 pcs/month
Automatic Grade	Automatic
Color & Page	Single Color
Warranty	1 Year

Printing Specifications

Parameter	Details
Build Volume	600 × 600 × 600 mm
Layer Resolution	0.05 mm – 0.3 mm
Maximum Print Speed	200 mm/s
Recommended Print Speed	60 – 100 mm/s
Nozzle Count	Single
Nozzle Diameter	0.4 mm (Optional: 0.6 / 0.8 / 1.0 mm)
Filament Diameter	1.75 mm
Print Accuracy	±0.1 mm
Supported File Formats	STL, G-code

Filament & Material Compatibility

Parameter	Details
Common Filaments	PLA, ABS, ASA, TPU, PETG, PETG-ESD, PP
Engineering Filaments	PET-GF, PET-CF, PA12-CF, HtPA-GF, HtPA-CF, Nylon, Carbon Fiber

Temperature & Build Platform

Parameter	Details
Max Nozzle Temperature	450°C
Max Bed Temperature	110°C
Platform Material	10 mm Thick Aluminum Hot Bed
Leveling	Auto Leveling & Babystep

Control & Software

Parameter	Details
Screen	5.0 inch Color Touch Screen
Software	Mingda OrcaSlicer, PrusaSlicer
Connectivity	USB, SD Card
Operating System Support	Windows, MacOS, Linux

Safety & Smart Features

Parameter	Details
Power Loss Recovery	Saves data automatically
Filament Detection	Pauses printing when filament runs out
Auto Shutdown	Automatically shuts down post-print

Electrical & Physical

Parameter	Details
Power Requirements	110V / 220V
Max Power Consumption	780W
Dimensions (L × W × H)	920 × 880 × 1270 mm
Net Weight	380 KG
Gross Weight	480 KG

Why Choose the Professional High Speed Industrial Large Format FDM Printer?

🔹 Industrial-grade build volume: 600 × 600 × 600 mm
🔹 High-temp printing with 450°C nozzle
🔹 Compatible with carbon fiber, nylon, PET-CF, PA12-CF, and more
🔹 Advanced features like auto-leveling and babystep calibration
🔹 10mm thick aluminum heated bed (up to 110°C)
🔹 Reliable filament detection and power recovery systems
🔹 Multiple connectivity options: USB, SD card
🔹 Works with Windows, Linux, and macOS
🔹 Print speed up to 200 mm/s
🔹 5-inch color touch screen for intuitive operation
🔹 Single 0.4 mm nozzle (upgradable to 0.6/0.8/1.0 mm)
🔹 Automatic shutdown after job completion
🔹 Precision layer resolution from 0.05 mm to 0.3 mm
🔹 Strong, enclosed metal structure for stable performance

Order Now – Get Your Professional High Speed Industrial Large Format FDM Printer Today!

Unlock the power of large-scale, high-performance 3D printing. Invest in the Professional High Speed Industrial Large Format FDM Printer and experience next-level productivity and industrial-grade results with every print.
