Discover the World of 3D Printing |High Precision Industrial SLA 3D Printer For Prototyping

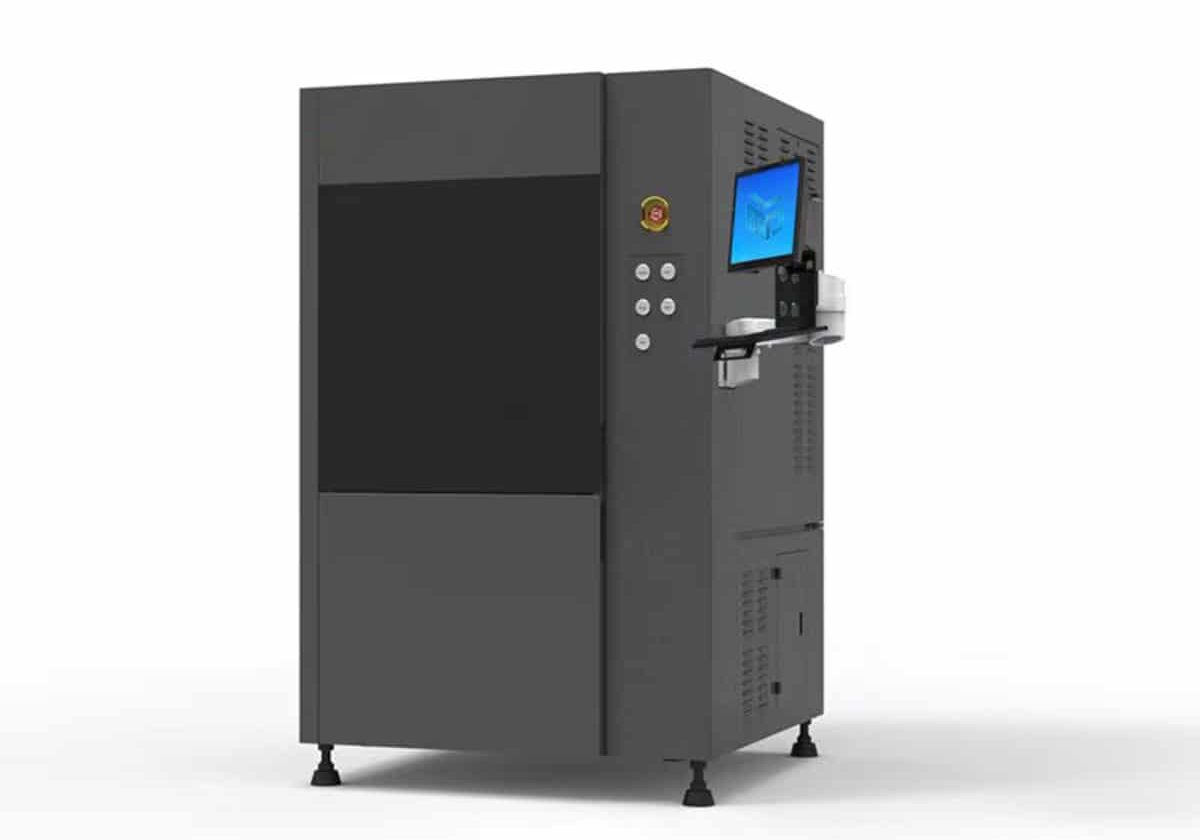

The SDS660Lite SLA 3D Printer for prototyping represents a new generation of industrial-grade precision printing. Powered by advanced Stereolithography (SLA) technology and equipped with a high-performance Diode-Pumped Solid-State Laser, this machine is designed to deliver consistent, high-resolution parts with exceptional surface quality. With its large build volume of 600mm × 600mm × 300mm, it’s the ideal solution for professionals who demand accuracy, speed, and reliability in prototyping and production. Know more..
LASER SYSTEM
| Parameter |
Specification |
| Type |
Diode-pumped solid-state laser Nd:YVO₄ INNGO |
| Wavelength |
354.7nm |
| Power |
300 ~ 800mW (lowest power to the liquid level) |
RECOATING SYSTEM
| Parameter |
Specification |
| Process |
Intelligent reduced vacuum press recoater |
| Normal Build Style |
0.1mm |
| Quick Build Style |
0.125mm |
| Precision Build Style |
0.075mm |
| Special Build Thickness |
0.05mm ~ 0.15mm |
OPTICAL & SCANNING
| Parameter |
Specification |
| Beam Diameter (Φ) |
0.10 – 0.50mm |
| Scan Style |
Galvanometer scanning |
| Part Scan Speed |
Recommended 6.0 m/s |
| Beam Jump Speed |
Recommended 10.0 m/s |
| Reference Build Weight |
50 – 180g/h |
ELEVATOR
| Parameter |
Specification |
| Position Repeatability |
±0.01mm |
| Platform |
Marble platform |
RESIN VAT
| Parameter |
Specification |
| Volume |
Approx. 200.0L @300mm Z axis |
| Build Envelope (XY) |
600mm (X) × 600mm (Y) |
| Build Envelope (Z) |
300mm |
| Max Build Weight |
100Kg @300mm Z axis |
SOFTWARE
| Parameter |
Specification |
| Network |
Ethernet, TCP/IP IEEE802.3 |
| Control Software |
ZERO 5.0 build software |
| Data Preparation Software |
3dMagics |
| Data Interface |
CLI, SLC, STL file formats |
INSTALLATION CONDITION
| Parameter |
Specification |
| Power |
200-240VAC 50/60Hz, single phase, 5/10 Amps |
| Ambient Temperature |
20–26ºC |
| Relative Humidity |
Less than 40%, non-condensing |
| Size |
1.2m (W) × 1.2m (D) × 1.9m (H) (excluding computer) |
| Weight |
Approx. 700kg |
WARRANTY
| Component |
Coverage |
| Laser |
5000 hours or 12 months (whichever comes first) |
| Main Machine |
One (1) year from installation date |
Why Choose the SDS660Lite 3D Printer for prototyping?
🔹 Precision SLA Technology – Delivers ultra-fine detail using diode-pumped laser.
🔹 Large Build Area – 600×600×300mm workspace for big or batch prints.
🔹 Multiple Build Modes – Adjustable layer thickness from 0.05mm to 0.15mm.
🔹 High-Speed Scanning – Scans at 6–10 m/s for fast, accurate builds.
🔹 Durable Construction – Marble platform and industrial-grade components.
🔹 Repeatable Accuracy – ±0.01mm positioning ensures consistent results.
🔹 Pro Software Support – Compatible with ZERO 5.0 and 3D Magics.
🔹 Stable Power Setup – Runs on 200–240V with safety features.
🔹 Solid Warranty – 12 months machine & 5000-hour laser coverage.
Order Now – Get Your High Precision Industrial SLA 3D Printer For Prototyping Today!
Unlock the next level of industrial 3D printing with the SDS660Lite. Whether you’re building prototypes, high-detail models, or complex engineering parts, this precision SLA printer delivers unmatched quality and reliability. Don’t miss the chance to elevate your production capabilities. Order the SDS660Lite today and experience the future of 3D printing with speed, precision, and performance you can trust.
