Discover the World of 3D Printing |Fiber Laser SLM 3D Metal Printer For Metal Model Prototyping

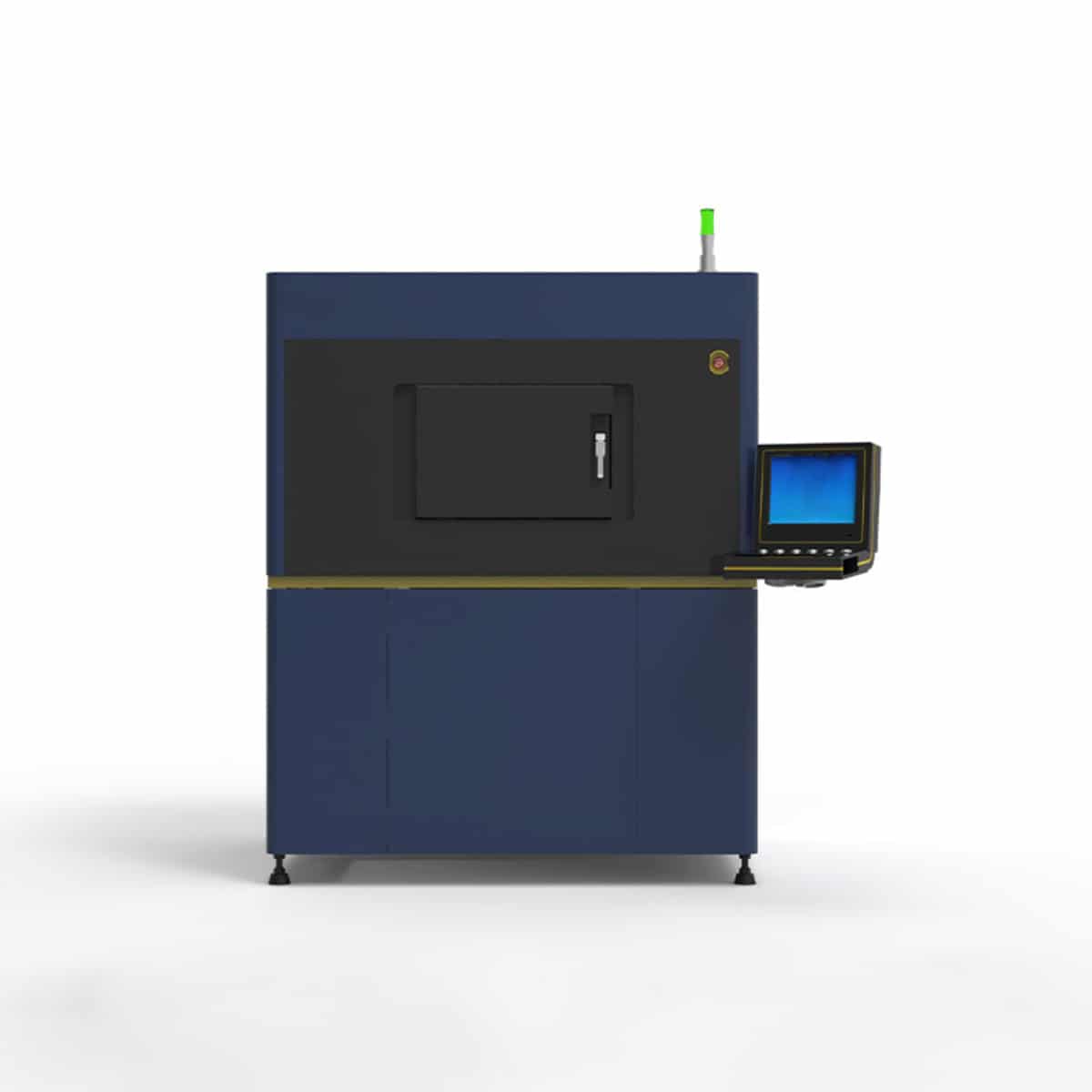

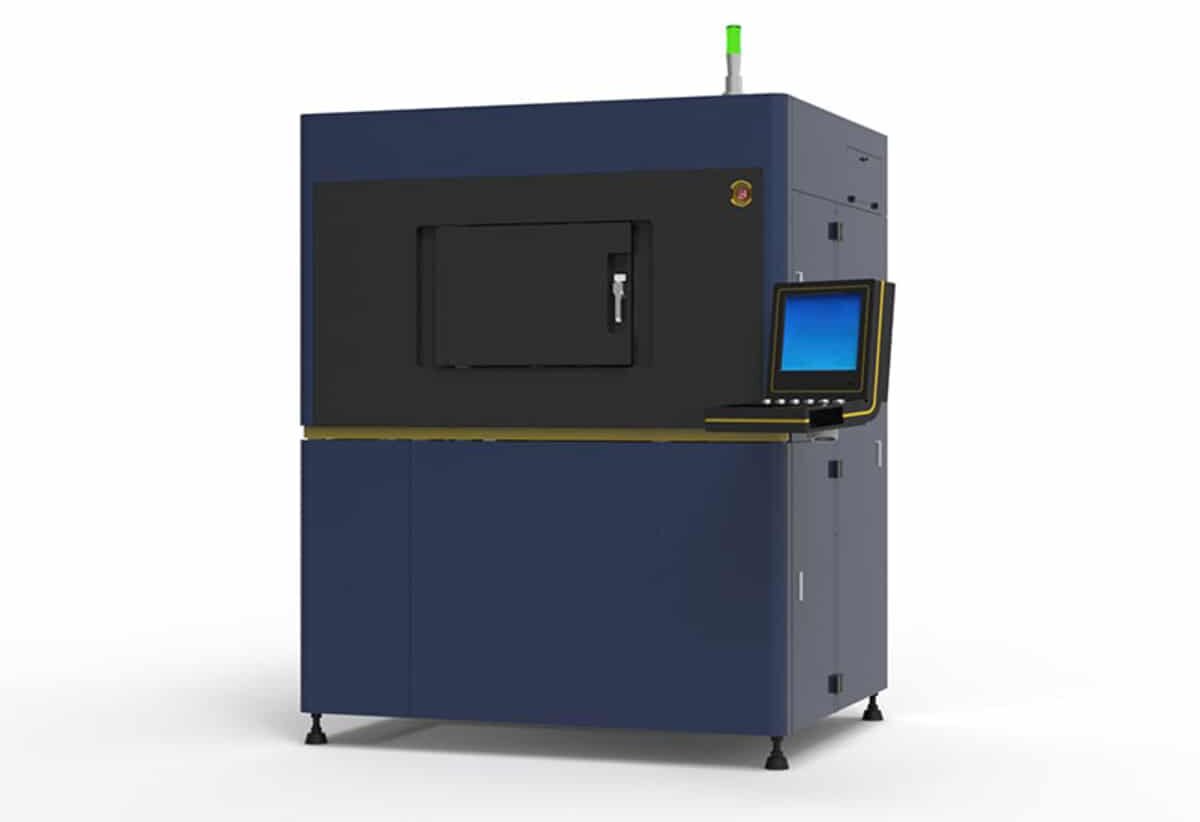

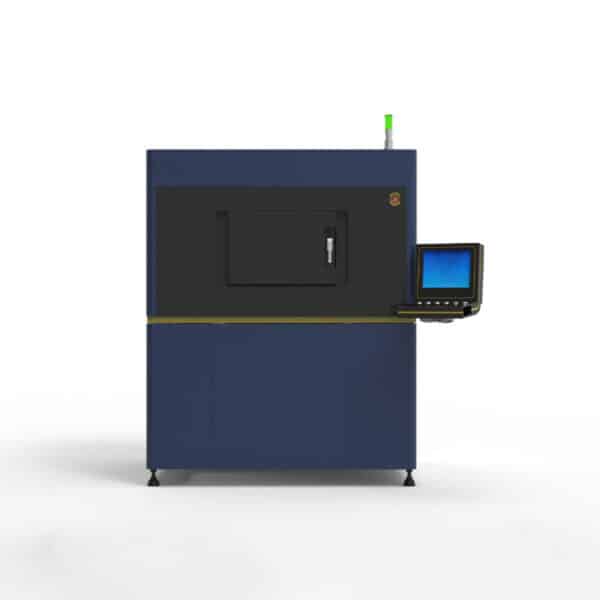

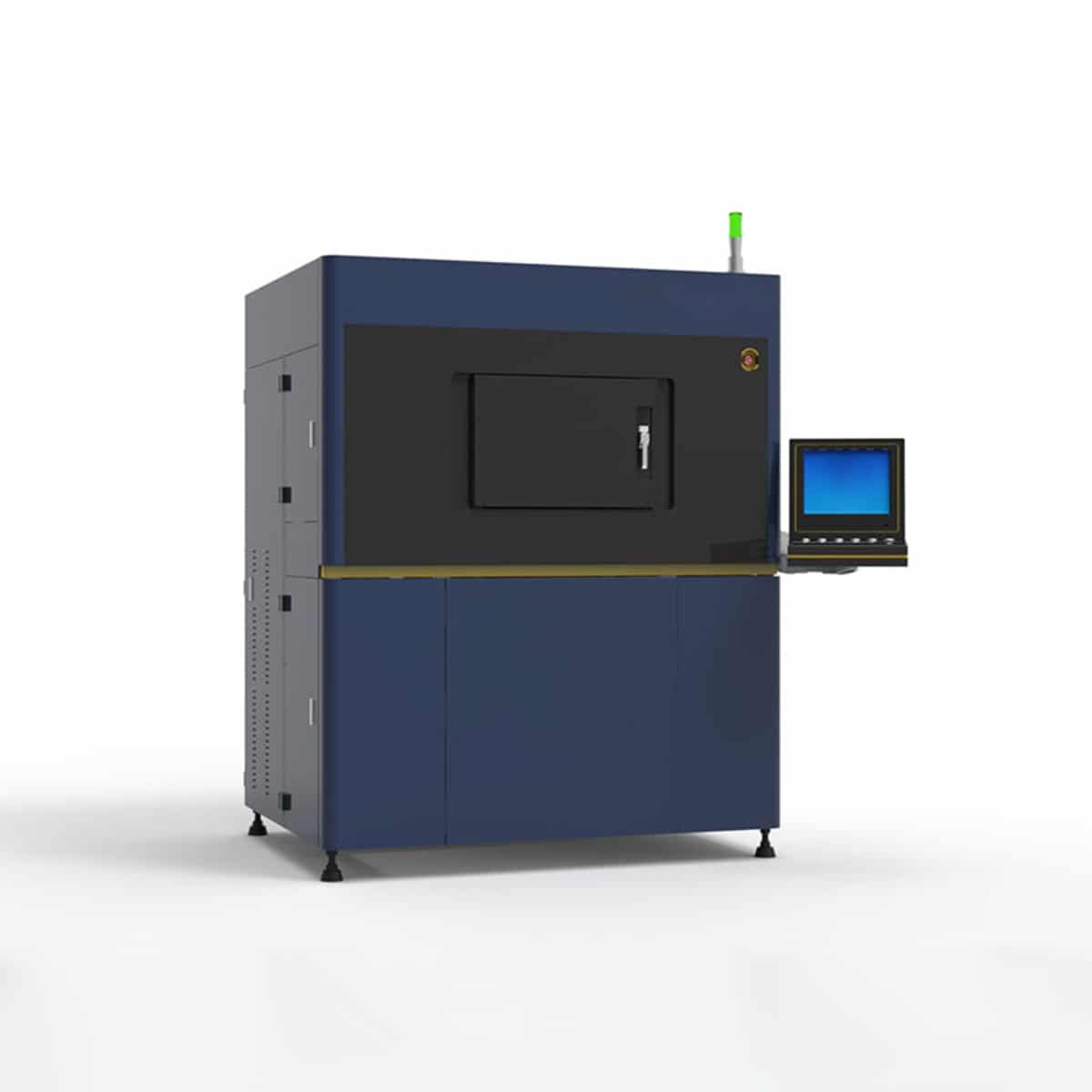

The iSLM280/280D Fiber Laser SLM 3D Metal Printer opens new possibilities in metal model prototyping, offering unmatched precision and performance for industrial applications. Equipped with a high-efficiency 500mW fiber laser and a build envelope of 280×280×350mm, this machine delivers consistent, high-resolution parts with ease. The advanced ScanLab system ensures fast and accurate scanning, while the 2-way scraper recoating process provides uniform layer application. With intelligent gas shielding, robust heating control, and compatibility with Presto SLM and 3D Magics software, this printer is built to streamline workflows and bring your metal prototypes to life with exceptional detail. Know more..
LASER SYSTEM
| Parameter |
Specification |
| Type |
Fiber Laser |
| Wavelength |
1064nm |
| Laser Power |
500mW |
| Power Auto-adjustment |
Optional |
RECOATING SYSTEM
| Parameter |
Specification |
| Process |
2-way Scraper recoating |
| Normal Build Style |
0.05mm |
| Quick Build Style |
0.05 ~ 0.15mm |
| Precision Build Style |
0.02 ~ 0.05mm |
OPTICAL & SCANNING
| Parameter |
Specification |
| Beam Diameter (@1/e²) |
0.06 – 0.20mm |
| Focus Style |
ScanLab |
| Part Drawing Speed |
Recommended 1.0 – 4.0 m/s |
| Beam Jump Speed |
Recommended 10.0 m/s |
ELEVATOR
| Parameter |
Specification |
| Vertical Resolution |
0.0002mm |
| Position Repeatability |
±0.01mm |
| Maximum Part Weight |
50kg |
RESIN VAT
| Parameter |
Specification |
| Volume |
Approx. 25L |
| Build Envelope |
280mm (X) × 280mm (Y) × 350mm (Z) |
| Heated Style |
Precision resistance wire heating |
| Gas Shielded |
Nitrogen, Argon |
SOFTWARE
| Parameter |
Specification |
| Preparation Software |
3D Magics 3.0 |
| Build Software |
Presto SLM build software |
| CAD Interface |
3D design software, STL file format |
INSTALLATION CONDITION
| Parameter |
Specification |
| Power |
200-240VAC 50/60Hz, three-phase, 25A |
| Ambient Temperature |
20-26ºC |
| Relative Humidity |
Less than 40%, non-condensing |
| Size |
1.60m (W) × 1.25m (D) × 2.20m (H) |
| Weight |
Approx. 1500kg |
WARRANTY (Terms & conditions apply)
| Component |
Warranty Details |
| Laser |
5000 hours or 12 months (whichever comes first) |
| Main Machine |
12 months from installation date |
Why Choose the Fiber Laser SLM 3D Metal Printer?
500mW fiber laser with optional power auto-adjustment
Spacious 280×280×350mm build envelope for large models
High-speed ScanLab galvanometer system up to 10 m/s
Precision positioning with ±0.01mm repeatability
Supports heavy parts up to 50kg
Dual-direction scraper recoating system for consistent layers
Compatible with Presto SLM & 3D Magics 3.0 software
Multiple build styles from 0.02mm to 0.15mm layer thickness
Durable industrial build with compact 1.6m × 1.25m footprint
12-month machine warranty & 5000-hour laser life
Order Now – Get Your Fiber Laser SLM 3D Metal Printer For Metal Model Prototyping Today!
Order now and upgrade your metal prototyping with the iSLM280/280D Fiber Laser SLM 3D Metal Printer—a reliable solution for precision, speed, and performance. With a 500mW fiber laser, 280×280×350mm build volume, and fast ScanLab scanning, it’s ideal for creating detailed metal parts. Featuring dual-way scraper recoating and advanced software compatibility, this printer is built for efficient, high-quality production.
